Best Quality 8AM/HC18 motor thermal protector  curernt overload motor cutoff switch Factory

Best Quality 8AM/HC18 motor thermal protector curernt overload motor cutoff switch Factory

HCET HC18 series are both temperature and current sensitive. They can protect the applications like motor or transformer from overheating or loading.
Adopt advanced automatic production technology and strict quality control production of high-quality temperature switches Over temperature and over current protector thermostat,Temperature sensor and other protective components

SEND INQUIRY NOW
CONTACT US

Phone:

+8618013328189

Email:

Telephone:

+86-025-56230008

Fax:

+86-025-56230009

Website:

Send your inquiry

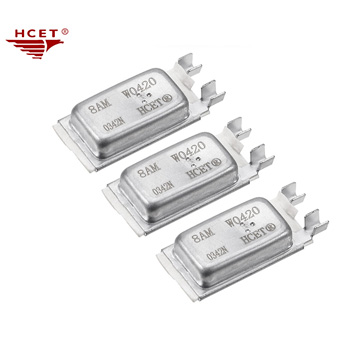

HC18/8AM motor thermal protector
HCET FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION

Product features:

8AM Designed specifically for motors with a fast rate of temperature rise (25-35°C/sec), the 8AM provides economical protection for a full range of motors and transformers ranging from washing machines to vacuum cleaners;

 computer disk drives to high capacity automotive motors.

This unique design is capable of providing all mode protection:

 Locked rotor

 Running overload

 Low voltage

Run both winding

Electrical specifications
Operating Temperature60~220℃, A specification for each 5℃)
Operating Temperature Tolerance±5℃,±8℃

HC18/8AM ELECTRONIC THERMOSTATS  MOTOR PROTECTOR Advantages
Thermal protector 8AM advantages

HCET THERMAL PROTECTOR DETAIL

HCET HC18/8AM ELECTRONIC THERMOSTATS  MOTOR PROTECTOR

1.use topnotch imported chip,

keep working time and protected temperature

2.heat-generated chip

3.Contactor use AgNi alloy big contactor is available for big current

HCET 8AM thermal protector material

8AM Extra high current  ELECTRONIC THERMOSTATS  MOTOR PROTECTOR

4.Variety of ends for choice.

can be customized

5.Imported free plating material,as ROHS' S requests.

6.Contactor use AgNi alloy


Temperature Protection:

When ambient temperature exceeds the specified value, the inside bimetal of 8AME series will trop off to cut the circuit. When the temperature lowers down, the bimetal will reset and the circuit is connected again.
Current Protection:
Auxiliary heater works together with bimetal, which can control the trip off time precisely. When the current exceeds the prescribed value, 8AM will cut the circuit immediately.


 HC18/8AM ELECTRONIC THERMOSTATS  MOTOR PROTECTOR Applications


HCET 8AM Motor protector

Split-phase motors

Capacitor start motors

Ballast protection

Transformers

Automotive motors
 HC18/8AM ELECTRONIC THERMOSTATS  MOTOR PROTECTOR Dimensional Drawing

HC18 DRAWING HC18 drawing

HCET  Advantages
Specilaze in IC for around 20 years
100% Tested before sale
Cooperate with over 35 famous brands from domestic and international market
Competitive and reasonable price
Abundant inventory and short lead time about 3-7 days
1 Year warranty
24hrs supports from our sales and R&D team
Competitive and reasonable price

Here’s why you should be using the 8AM protector in your product:

- Compact, easy to install

- Individually temperature calibrated and checked

- Positive make-and-break with Klixon® snapaction disc

- Gasketed steel case suitable for many impregnation processes

- Current and temperature sensitivity for maximum design flexibility

- Specially designed terminals for easy addition of wireleads.
