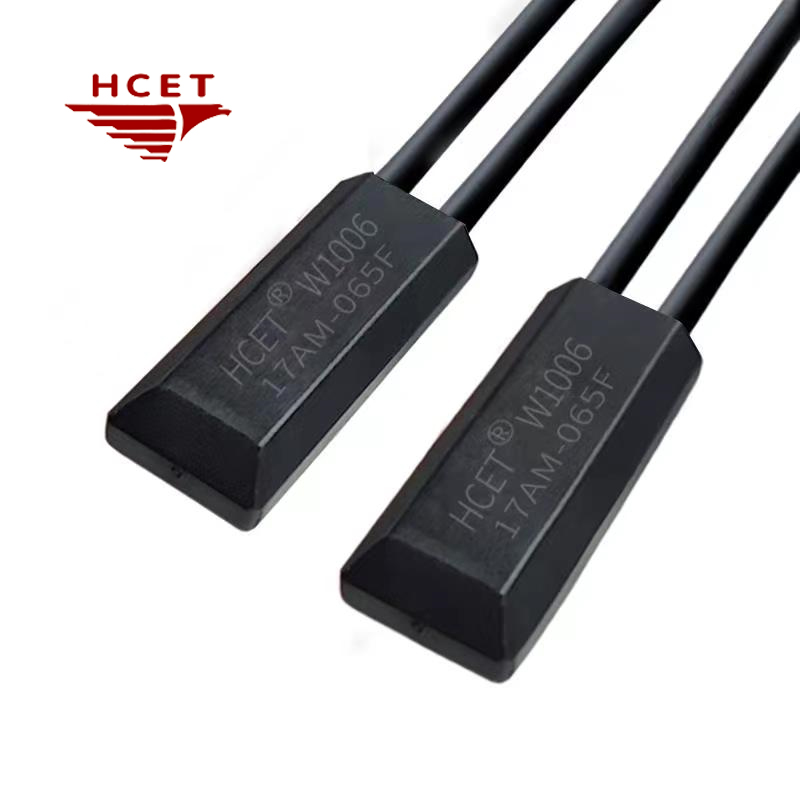

HCET 17AM 7AM   thermostat  temperature control switch sealed waterproof motor thermal protector small size

HCET 17AM 7AM thermostat temperature control switch sealed waterproof motor thermal protector small size

The 17AM  thermostat  temperature control switch sealed waterproof motor  thermal protector  is made of heat resistant plastic based on the 17AM thermal protector,

It makes its shell waterproof and insulating. It is applicable to waterproof electric heating pad
characteristic ,Air immersed paint motor and other products.


SEND INQUIRY NOW
CONTACT US

Phone:

+8618013328189

Email:

Telephone:

+86-025-56230008

Fax:

+86-025-56230009

Website:

Send your inquiry


HCET 17AM  self-hold temperature control switch  for motor

FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION

Product features:

HCET 17AM  Motor thermal protector temperature control switch

●Small size design;

● Each tripping temperature is strictly calibrated and checked;

●The bimetallic sheet has 100% SANP ACTION;

●It has dual functions of sensing current and temperature;

●We can rivet wire rods of various specifications and lengths according to customers' requirements;

●Each part strictly complies with the environmental protection standards of European ROHS.




Electrical specifications


 20A/16V DA 10A/16 V DC
20A/125V AC
Technical Parameter



Action temperature    from 50°C-180°C, Every 5 °C a specification. Temperature is optional and customized.

Temperature tolerance±3℃,±5℃
Applications


Other applications

●Various motors

●Pumps, air compressor

●Fluorescent ballasts and Lightings

●Heating pad, Electrical blankets

●Electrical tools, Chargers, Transformers

●Home appliances, Heating appliances

Dimension

Product Details

Imported chip

More accurate disconnection time and disconnection temperature

   Unique design

Unique design auxiliary heating plate, double protection and more safety


Agni alloy

AgNi alloy dynamic contact and static contact are made of AgNi alloy to ensure a longer service life.



Imported materials

Imported plating free materials, meeting ROHS standards

Product assurance
  • 01
    High accuracy


  • 02
    Stable performance
  • 03
    Good synchronization

04
Strong reliability

  • 05
    Long service life

  • 06
    Small radio interference
Advantages
Independent strength R & D

Haichuan temperature control has its own professional R & D team, which has successively obtained dozens of "invention patents" and "utility model patents", and can carry out directional design and development according to the needs of users' products

Accurate and reliable quality

The original imported core components adopt American EMS chips. Haichuan temperature control products have passed the international authoritative certification such as UI, TUV, CQC, ISO / TS16949, CTI and SGS to achieve precision protection.


Complete functional specifications

Haichuan temperature control products have complete specifications, and can choose many existing models such as "automatic reset", "power-off reset", "temperature and current double protection", which can effectively reduce the development cost and time for you.

Efficient production and fast delivery

Haichuan temperature control self built factory, introduced full-automatic production line and full-automatic chip forming machine, realized full-automatic assembly, more efficient production capacity, greatly shortened production cycle, and ensured faster delivery

Certifications


CQC,UL,TUV,VDE
