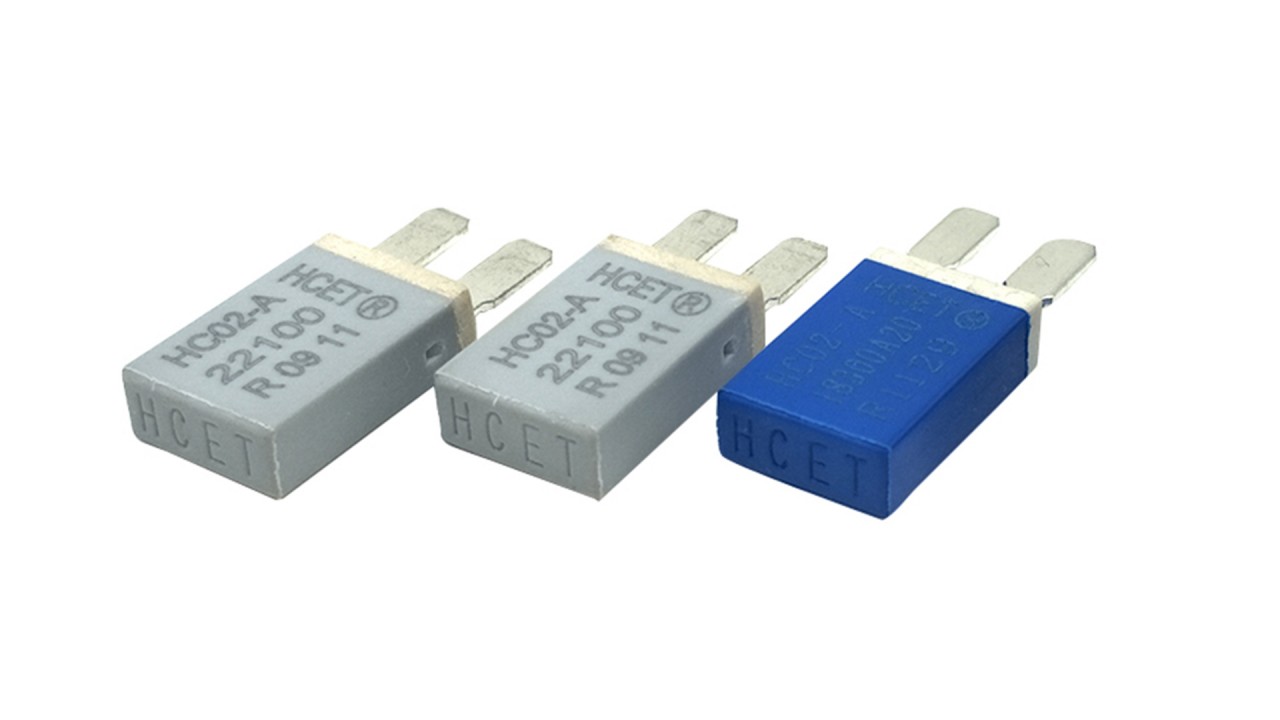

HC02 Series Over-current Motor Protector.

HC02 series is a precise motor protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively
Special Features:
● Small size, long life and high reliability;
● Protected with overload, plugging turn, or short circuit flow well;
● According to the customer request, setting overload trip current, max 30A;
● Accurate trip off time can prevent motor from overheating(4~10s);
● Each type of parts strictly implemented European ROHS environmental standards;
● Terminals are optional and customized.
Electrical Characteristics:
● 1~30amps/15volts DC
● 1~15amps/30volts DC
● 1~30amps/250volts AC
● 1~30amps/125volts AC
Technical Parameters:
● Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:±8℃,±10℃.
● Trip off current range: 1~30A.
● Trip off time: 4~10s.
Main Applications are as follows:
● Window motor , Skylight and aerial motor.
● Engine of the front and rear windshield wipers, slide door start and regulator engine.










Send your inquiry


1.How about your products quality ?
We are very very care our products quality. Our management is very seriously, every product need to be inspected beforeshipment. Our products quality up to the Europe and America's standards. But our prices are lower than this country, it isreasonable.
2.What certificates you get ?
We have get 5 certificates --CQC : GB/T14536 , ISO/TS 16949 , EN 60730 , UL60730-1 and some products design rights.
3.How about the shipment and delivery time?
The true delivery time depend on the quantity and products. Here need 5-7 days to produce for normal orders. We prefer to use international express like FedEx/UPS/TNT/DHL,but the shipment can be chose by our clients.


1.100% inspection before shipment.
2.ISO/TS 16949-certified, TUV, UL, CQC.
3.Customized orders accepted.
4.Own bimetallic material manufacturing and research and development base.
