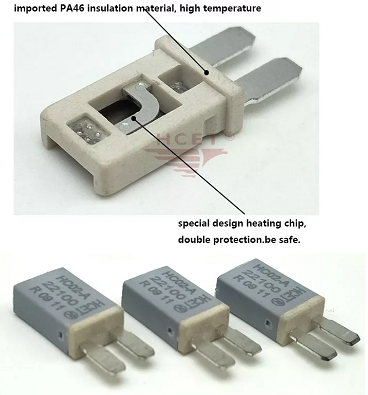

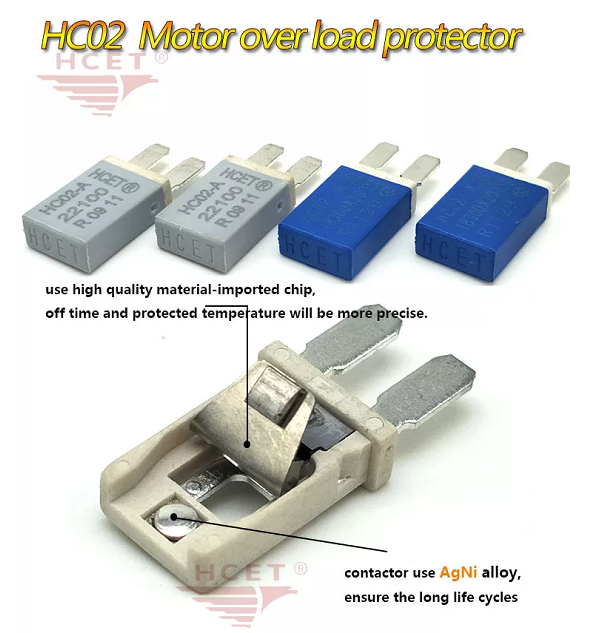

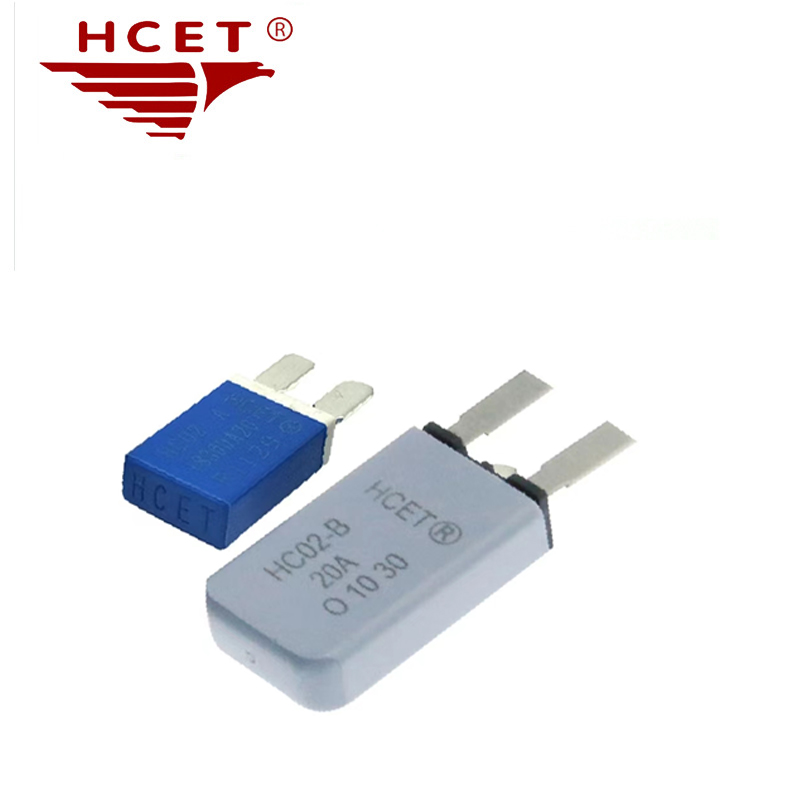

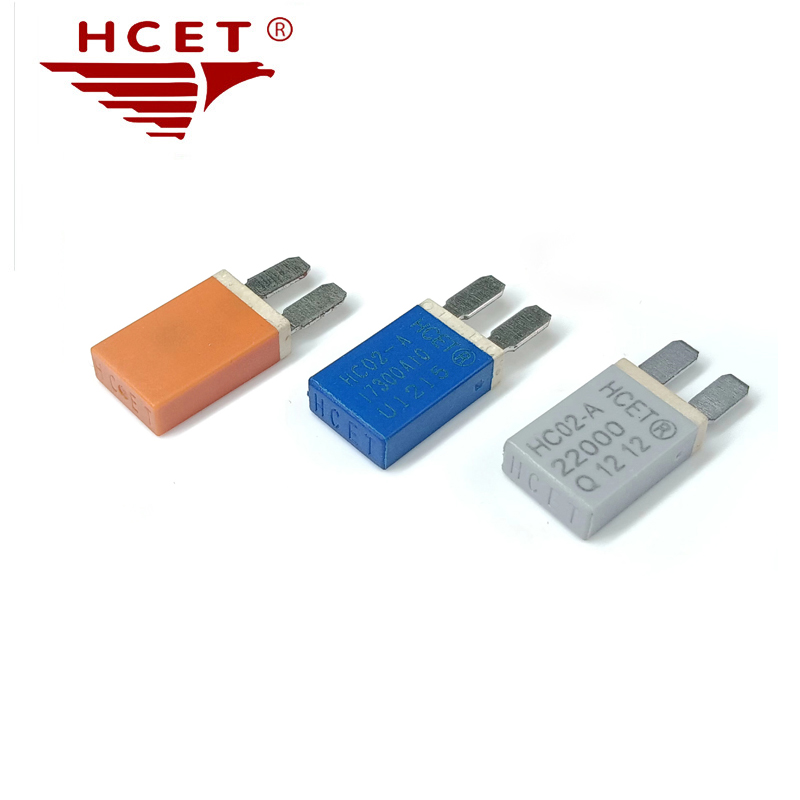

HC02 series motor thermal protector is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively.
FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION
◎Small size, long life and high reliability;
◎Protected with overload, plugging turn, or short circuit flow well；
◎According to the customer request,setting overload trip current,max 30A；
◎Accurate trip off time can prevent motor from overheating(4~10s)；
◎Each type of parts strictly implemented European RoHS environmental standards；
◎Terminals are optional and customized.
| 1~30amps/15 volts DC | 1~15amps/30 volts DC |
| 1~15amps/250 volts AC | 1~30amps/125 volts AC |
Action temperature: | 60℃~180℃, every 5 ℃ a specification. |
Temperature tolerance: | ±8℃, ±10℃ |
Trip off current range: | 1~30 |
Trip off time: | 4~10s |
◎ Window motor, DC pedal motor, skylight and aerial motor.
◎ Engine of the front and rear windshield wipers, slide door start and regulator engine.
