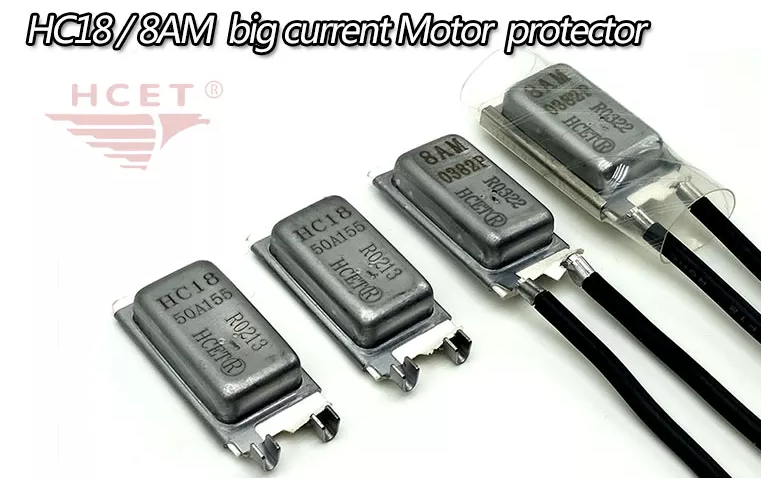

HC-18 Big current thermal protector current and temperature sensing
Focus on thermal protector ,providing a comprehensive solutions

Special Features

Accurate tripping off time, prevent motor temperature from being too high;

Both temperature and current sensing.


Temperature Range and Tolerance
Operating Temperature60~220℃, A specification for each 5℃)
Operating Temperature Tolerance±5℃,±8℃


Thermal protector 8AM advantages

HCET 8AM

1.use topnotch imported chip,

keep working time and protected temperature

2.heat-generated chip

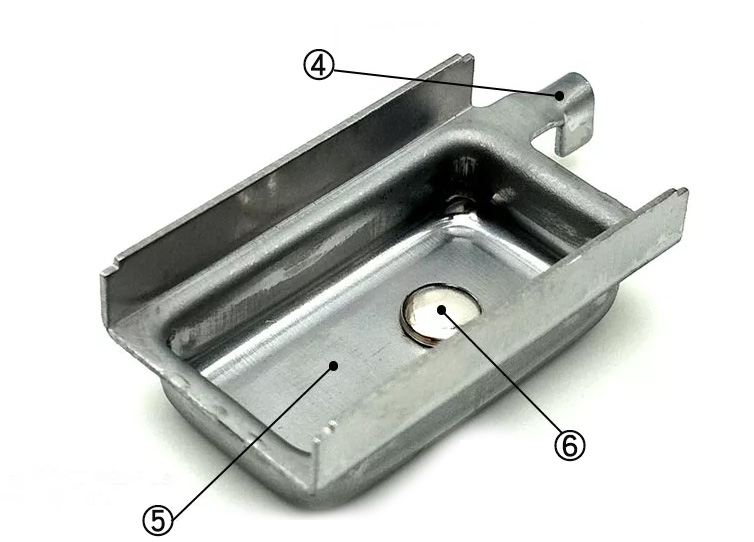

3.Contactor use AgNi alloy big contactor is available for big current

8AM Extra high current thermal protector

4.Variety of ends for choice.

can be customized

5.Imported free plating material,as ROHS' S requests.

6.Contactor use AgNi alloy


Temperature Protection:
When ambient temperature exceeds the specified value, the inside bimetal of 8AME series will trop off to cut the circuit. When the temperature lowers down, the bimetal will reset and the circuit is connected again.
Current Protection:
Auxiliary heater works together with bimetal, which can control the trip off time precisely. When the current exceeds the prescribed value, 8AM will cut the circuit immediately.

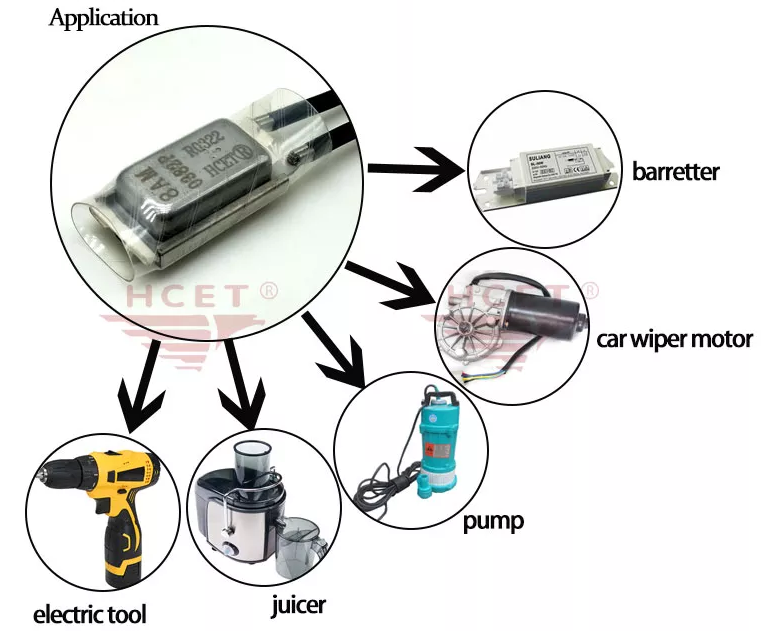

 HCET Thermal protector 8AM Application

Electrical tools          Mixer                 Sinking pump          High pressure washer

Split phase motor     Oil pump          Car motor                 Washing machine

Dust collector            Ballasts              Transformer           Large water pump          Capacitor start motor



Dimensional Drawing
