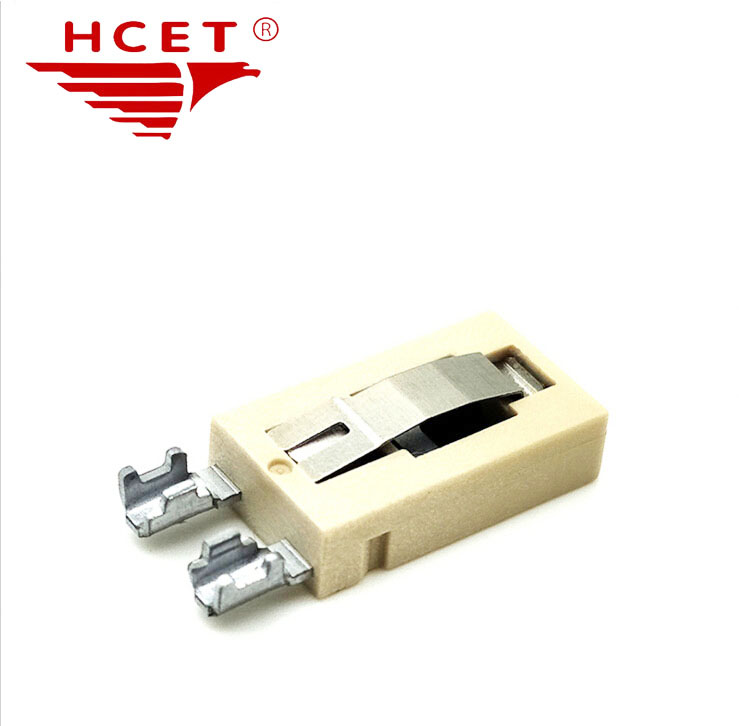

High quality Haichuan HCET-B washing machine motor temperature control switch manufacturer

SEND INQUIRY NOW
Supplier type
Original manufacturer
MOQ 3000PCS
Lead time <10000pcs , 7 work days ;   >10000pcs Negotiable
Certificate TUV,UL,CQC,ROHS


SEND INQUIRY NOW

HCET-B current temperature double protection motor protector (self-contained) current overload protector has the protection function of overheating protection and accurate control of current overload time. It can select the function of turning off the power supply and then turning on (power-off reset), which ensures a higher level of safety protection

[Model]: HCET-B

[Temperature]: 50 ℃ - 180 ℃

[Features]: small size, easy installation of shell insulation, with dual temperature and current protector function; Power off reset function can be added


Send your inquiry
Product features:



1. with temperature and current double protector function

2. Power off reset function can be added

3. The overload tripping current can be set according to customer requirements, up to 35A

4. Very accurate tripping time (3s-8s) to prevent the motor temperature from being too high

5, small size, shell insulation and convenient installation

6. Each part strictly complies with European ROHS environmental protection standards

Electrical specifications


30 amps/15 volts DC 15 amps/30 volts DC
25 amps/250 volts AC 35 amps/125 volts AC
Technical Parameter


 Select and control the tripping range of overload current
Operating temperature range 50 ℃ - 180 ℃, any temperature within the range can be provided according to customer requirements
Temperature tolerance ±5℃,±8℃
1A-35A
Tripping time 3s-8s (special time can be customized)
Application


New energy charging pile, new energy conversion plug, charging gun
Electric tools, snow sweepers
   Washing machine motor, juice machine motor, soybean milk machine, etc
Identification description

I MODEL NO.: HCET-B Series Self-hold Motor Protector

II PARAMETERS CODE: Action temperature, reset temperature, current time parameters

III POWER RESET FUNCTION: Power reset function with P, Opposite is no

IV MANUFATURING DATE: Year of Calibration,A=2000 through Z=2025 Week of Calibration,! ~52 possible

Appearance Dimension



Design principle


◎ The protector is connected to PTC in parallel,then connected to Application in series. When the application is working normally, the current will flow through protector. PTC will not work.





◎ The protector is actuated by the heat received from surrounding parts. The electrical circuit is interrupted when the disc reaches its pre-set open temperature. Due to the heat supply from the PTC pill, the bimetal disc does not cool down below the close temperature. The contacts will remain open until the appliance is switched off by the user, assuring a higher level of safety.

◎ When switched off, the device cools down to a safe temperature again and the contacts will automatically reset.


Product assurance
  • 01
    High accuracy


  • 02
    Stable performance
  • 03
    Good synchronization

04
Strong reliability

  • 05
    Long service life

  • 06
    Small radio interference
Company Advantages
Independent strength R & D

Haichuan temperature control has its own professional R & D team, which has successively obtained dozens of "invention patents" and "utility model patents", and can carry out directional design and development according to the needs of users' products

Accurate and reliable quality

The original imported core components adopt American EMS chips. Haichuan temperature control products have passed the international authoritative certification such as UI, TUV, CQC, ISO / TS16949, CTI and SGS to achieve precision protection.


Complete functional specifications

Haichuan temperature control products have complete specifications, and can choose many existing models such as "automatic reset", "power-off reset", "temperature and current double protection", which can effectively reduce the development cost and time for you.

Efficient production and fast delivery

Haichuan temperature control self built factory, introduced full-automatic production line and full-automatic chip forming machine, realized full-automatic assembly, more efficient production capacity, greatly shortened production cycle, and ensured faster delivery
