HCET 17AM   Temperature sensors Thermal cutoffs
for motor

FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION

17AM Motor Temperature sensors features:

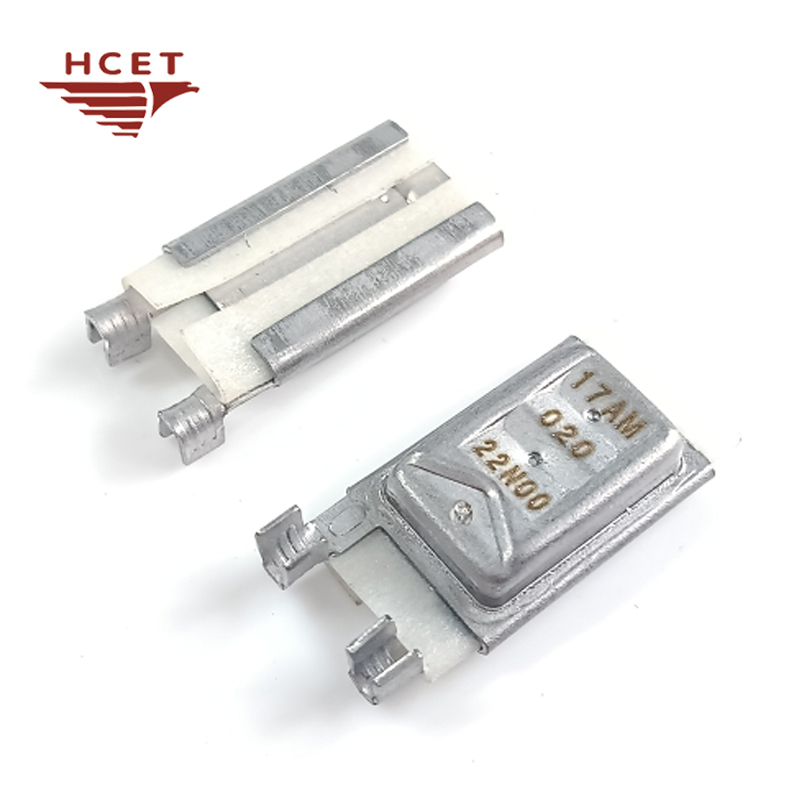

HCET 17AM Thermal cutoffs protector

Snap-action device for quick break switching action.

●Internal heat source provides a low profile design for better fit into tight spaces.

●Self-hold functionality available for both 120 VAC and 240 VAC applications

●Conductive bimetal construction; the bimetallic element carries the circuit current for maximum current sensitivity.

●Various resistances of bimetal available.

●Preset calibration temperature; not adjustable in the field.

●Case electrically alive; insulating sleeving available.

 ●Available with or without factory applied lead wires.



17AM Motor Temperature sensors Electrical specifications

HCET 17AM Thermal cutoffs protector

 20A/16V DA 10A/16 V DC
20A/125V AC
17AM Motor Temperature sensors Technical Parameter

 HCET 17AM Thermal cutoffs protector

Action temperature    from 50°C-180°C, Every 5 °C a specification. Temperature is optional and customized.

Temperature tolerance±3℃,±5℃
17AM Motor  Temperature sensors Applications


●Various motors

●Pumps, air compressor, and Cleaners

●Fluorescent ballasts and Lightings

●Heating pad, Electrical blankets

●Electrical tools, Chargers, Transformers

●Home appliances, Heating appliances



17AM Motor  Temperature sensors Dimension

17AM drawing

17AM Motor  Temperature sensors Product Details

Imported chip

More accurate disconnection time and disconnection temperature

   Unique design

Unique design auxiliary heating plate, double protection and more safety


Agni alloy

AgNi alloy dynamic contact and static contact are made of AgNi alloy to ensure a longer service life. 17AM's unique large size contact is suitable for higher current applications.



Imported materials

Imported plating free materials, meeting ROHS standards

Product assurance
  • 01
    High accuracy


  • 02
    Stable performance
  • 03
    Good synchronization

04
Strong reliability

  • 05
    Long service life

  • 06
    Small radio interference
Advantages
Independent strength R & D

Haichuan temperature control has its own professional R & D team, which has successively obtained dozens of "invention patents" and "utility model patents", and can carry out directional design and development according to the needs of users' products

Accurate and reliable quality

The original imported core components adopt American EMS chips. Haichuan temperature control products have passed the international authoritative certification such as UI, TUV, CQC, ISO / TS16949, CTI and SGS to achieve precision protection.


Complete functional specifications

Haichuan temperature control products have complete specifications, and can choose many existing models such as "automatic reset", "power-off reset", "temperature and current double protection", which can effectively reduce the development cost and time for you.

Efficient production and fast delivery

Haichuan temperature control self built factory, introduced full-automatic production line and full-automatic chip forming machine, realized full-automatic assembly, more efficient production capacity, greatly shortened production cycle, and ensured faster delivery

Certifications


CQC,UL,TUV,VDE
