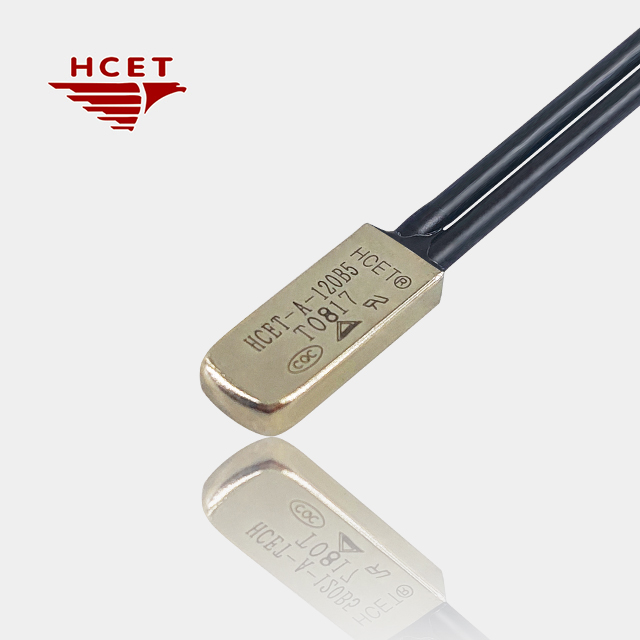

HCET-A/TB02
HCET provides a reliable comprehensive solutions for overheating and overcurrent protection.
Language
HCET provides a reliable comprehensive solutions for overheating and overcurrent protection.
HCET-A/TB02 series is a precise protector with small size. It is sensitive, accurate and reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer.
Electrical Characteristics:
◎2.5A/250 V AC
◎5A/120 V AC
◎10A/12 VDC
◎5A/24 VDC
Technical Parameters:
◎Action temperature from 30℃-155℃, Every 5 ℃ a specification.
Temperature is optional and customized.
◎Temperature tolerance:±3℃,±5℃.
FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION
HCET-A APC circuit board temperature control switch thermal protector
◎Small size, Installation is more flexible and convenient;
◎Havethe stable work characteristics and excellent reliability;
◎Sensitive temperature and snap action；
◎Nickel and wires are optional；
◎Each type of parts strictly implemented European RoHS environmental standards；
◎Terminals are optional with normally closed Model B and normally open Model K.
| 2.5A/250V AC | 5A/120 V AC |
| 10A/12V DC | 5A/24V DC |
Action temperature from 30°C-155°C, Every 5 °C a specification. Temperature is optional and customized.
| Temperature tolerance | ±3℃，±5℃ |
New energy charging pile, new energy conversion plug, charging gun
| Electric tools, snow sweepers | ||
| Washing machine motor, juice machine motor, soybean milk machine, etc |
Imported chip
More accurate disconnection time and disconnection temperature
Sterling silver contact
Ensure longer and more reliable life
Ultra small volume
International leading level, more convenient and faster installation
Imported shrapnelImported NGK beryllium copper shrapnel is more powerful
Fatigue resistance, product service life Longer term
Haichuan temperature control has its own professional R & D team, which has successively obtained dozens of "invention patents" and "utility model patents", and can carry out directional design and development according to the needs of users' products
The original imported core components adopt American EMS chips. Haichuan temperature control products have passed the international authoritative certification such as UI, TUV, CQC, ISO / TS16949, CTI and SGS to achieve precision protection.
Haichuan temperature control products have complete specifications, and can choose many existing models such as "automatic reset", "power-off reset", "temperature and current double protection", which can effectively reduce the development cost and time for you.
Haichuan temperature control self built factory, introduced full-automatic production line and full-automatic chip forming machine, realized full-automatic assembly, more efficient production capacity, greatly shortened production cycle, and ensured faster delivery
