Manufacturing thermal protectors and switches since 2010.

HCET-A APC circuit board temperature control switch thermal protector

SEND INQUIRY NOW

 Key Benefits:
• Good sealed.
• Small in size, normally closed thermal switch  can be embedded inside the coil.
• Th case of normally closed thermal switch can bear up to 50KG coil shaping pressure and has high thermal conductivity and is temperature-sensitive.
• Pure temperature action type products, bimetal-disc without current and heat effect, accurate temperature control.

SEND INQUIRY NOW

HCET  temperature switch, thermal switch , thermal protector
HCET-A/TB02 series is a precise protector with small size. It is sensitive, accurateand reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer.


Send your inquiry


HCET -A Temperature control switch

FOCUS ON TEMPERATURE & CURRENT PROTECTION SOLUTION

Product features:

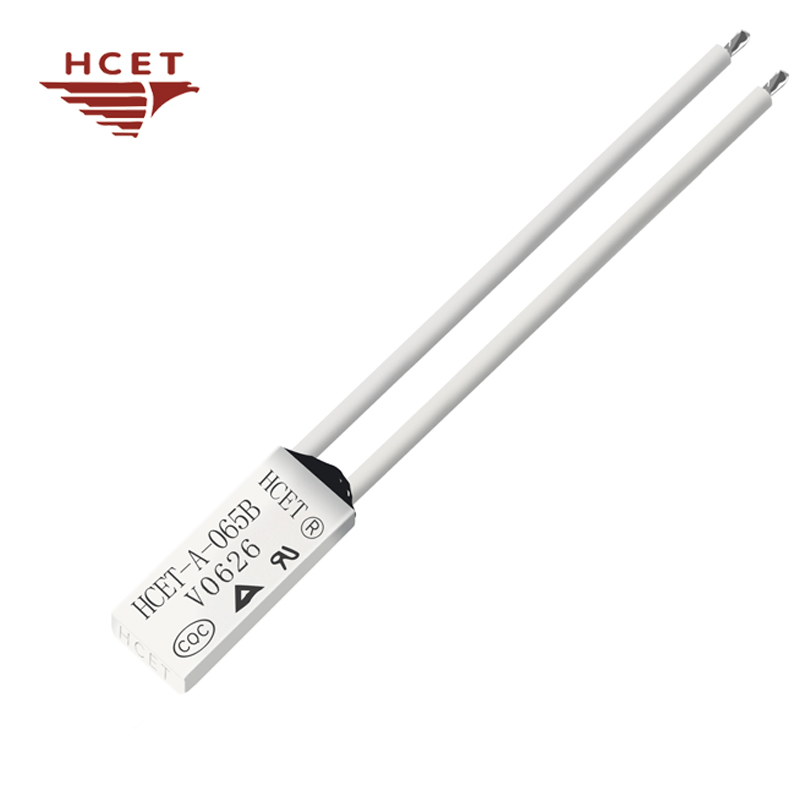

HCET-A  APC circuit board temperature control switch thermal protector

● Small size, Installation is more flexible and convenient; ©Havethe stable work characteristics and excellent reliability;

●Sensitive temperature and snap action ;

●Nickel and wires are optional;

●Each type of parts strictly implemented European ROHS environmental standards;

●Terminals are optional with normally closed Model B and normally open Model K


Electrical specifications


 2.5A/250V AC5A/120 V AC
10A/12V AC5A/24V AC
Technical parameter

 Action temperature    from 30°C-155°C, Every 5 °C a specification. Temperature is optional and customized.

Temperature tolerance±3℃,±5℃
Application

  New energy charging pile,   new energy conversion plug, charging gun

Electric tools, snow sweepers
Washing machine motor, juice machine motor, soybean milk machine, etc
Dimension

Product Details

Imported chip

More accurate disconnection time and disconnection temperature

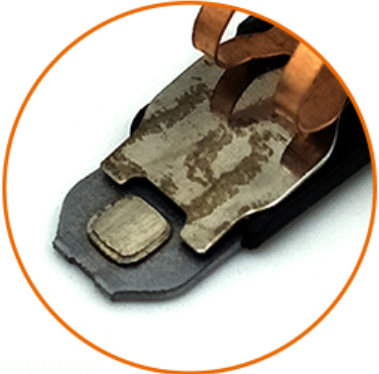

 Sterling silver contact

Ensure longer and more reliable life

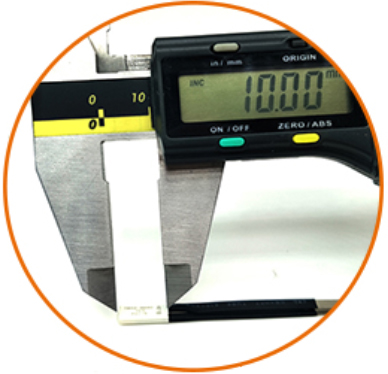

 Ultra small volume

International leading level, more convenient and faster installation

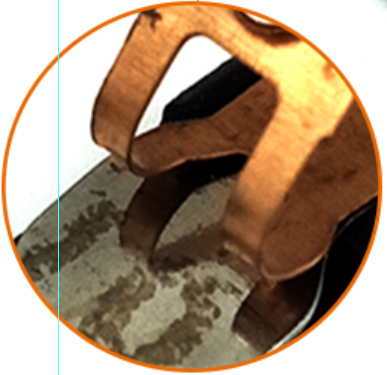

 Imported shrapnel

Imported NGK beryllium copper shrapnel is more powerful

Fatigue resistance, product service life Longer term

Product assurance
01
    High accuracy


02
Stable performance
  • 03
    Good synchronization

04
Strong reliability
  • 05
    Long service life
  • 06
    Small radio interference
Advantages
Independent strength R & D

Haichuan temperature control has its own professional R & D team, which has successively obtained dozens of "invention patents" and "utility model patents", and can carry out directional design and development according to the needs of users' products

Accurate and reliable quality

The original imported core components adopt American EMS chips. Haichuan temperature control products have passed the international authoritative certification such as UI, TUV, CQC, ISO / TS16949, CTI and SGS to achieve precision protection.


Complete functional specifications

Haichuan temperature control products have complete specifications, and can choose many existing models such as "automatic reset", "power-off reset", "temperature and current double protection", which can effectively reduce the development cost and time for you.

Efficient production and fast delivery

Haichuan temperature control self built factory, introduced full-automatic production line and full-automatic chip forming machine, realized full-automatic assembly, more efficient production capacity, greatly shortened production cycle, and ensured faster delivery
